Serdi Profile Large

SKU

037857

Price

POA

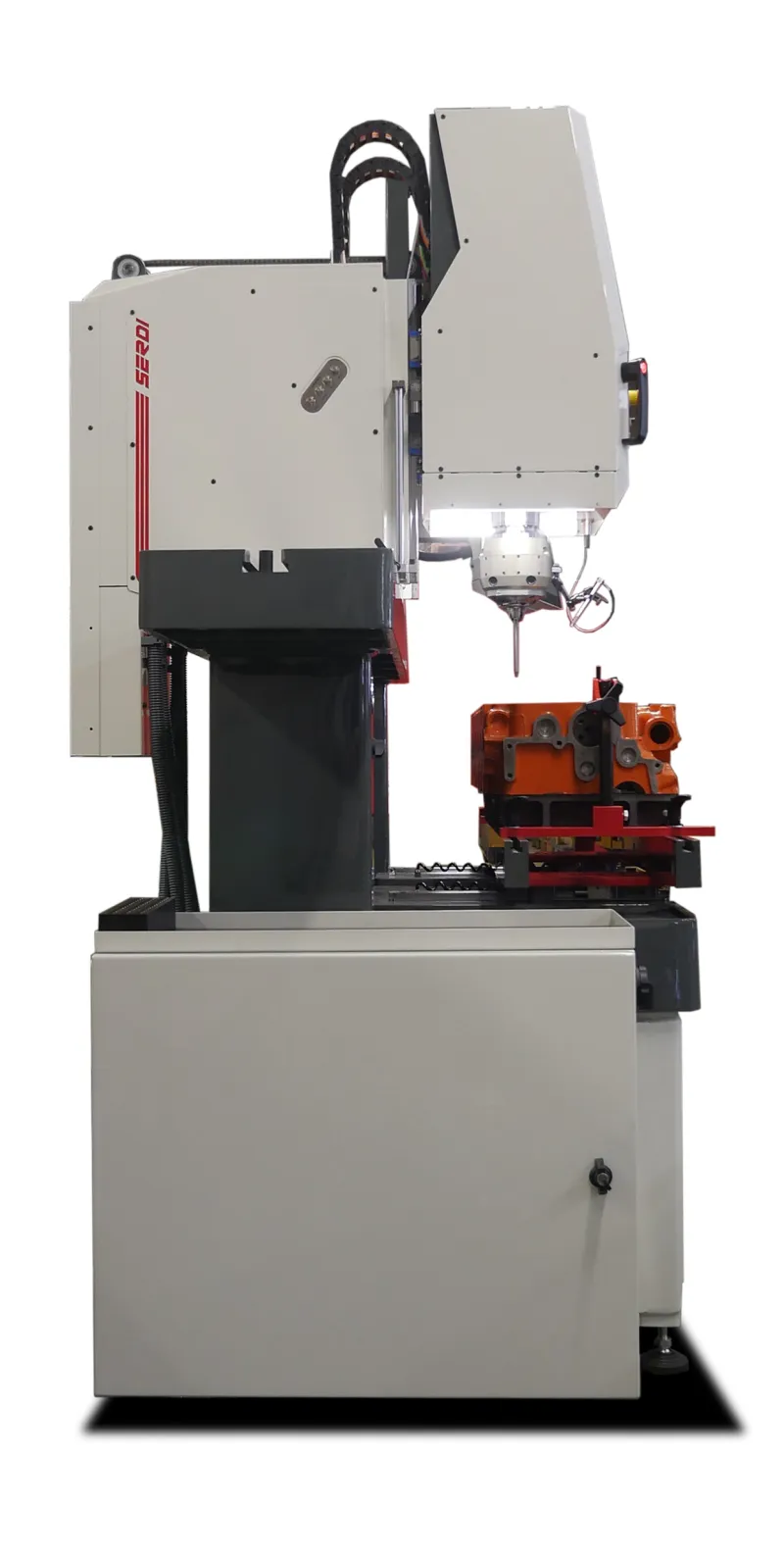

Extremely versatile machine for machining any kind of cylinder heads from small motorcycle to large stationarly engine.
Extended beam to ease the mounting and unmouting of large and heavy cylinder heads on the table and extend the machine head stroke

Redesigned and FEA optimized cast iron machine base for improved rigidity
Machining capacity from dia. 14 to 120 mm and way more with special tooling.

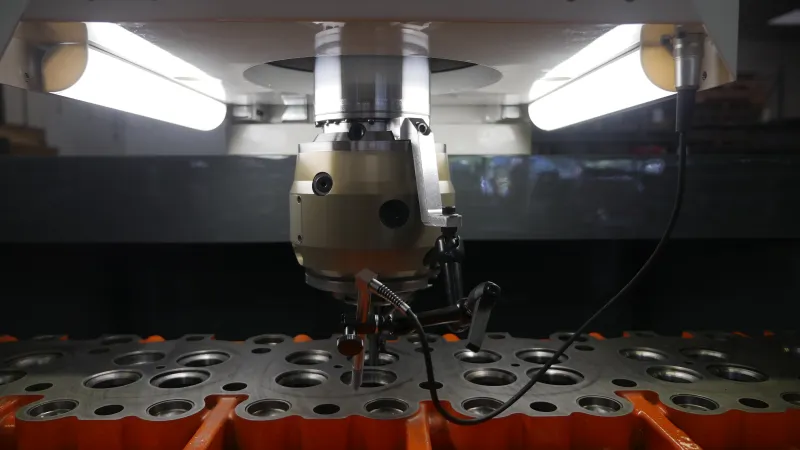

Built-in spindle motor and triple air-flaot centering system. Minimal floating parts inertia (30 % lighter than previous generation) and maximal floatation for unmatched centering sensitivity.
Intake and exhaust seats can be performed simultaneously without tool holder changes.
3 kW built-in spindle-motor with maximum torque from 0 to 3000 rpm.
High machining accuracy even at low speed thanks to a direct drive transmission.
Latest generation Siemens CNC, drives and motors. User friendly software on a multi-touch screen.
U axis with 22 mm radius
Z axis (vertical) stroke of 120 mm
